Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 ๗ 45 Km ) ;
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF-5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS ;
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T NEW ;
    • MRV-U ;
    • MRV-UBM FOR EXTENDED RANGE ROCKETS ;
    • PROXFU 2/PP ( collaboration with SC MIRSAND SRL) ;
    • PROXFU 2/FCC ( collaboration with SC MIRSAND SRL) .

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW ;
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 NEW ;
    • 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
    • 122 mm HE ROUND FOR THE D - 30 ;
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS ;

    ILLUMINATING BOMBS NEW :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with T - 1 FUZE or ELECTRONIC TIME FUZE ETF - 1T ;
    • 120 mm ILLUMINATING BOMBS with T - 1 FUZE or ELECTRONIC TIME FUZE ETF - 1T ;
    • 60 mm ILLUMINATING BOMBS with MECHANICAL-PYROTECHNICAL TIME FUZE PTF - 3T.
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • FUZE T - 1 FOR ILLUMINATING BOMBS CAL. 81 / 82 mm , 120 mm ;
    • ELECTRONIC TIME FUSE ETF - 1T FOR ILLUMINATION BOMBS CAL. 81 / 82 AND 120 mm ;
    • MECHANICAL - PYROTECHNICAL TIME FUZES PTF - 3T FOR 60 mm ILLUMINATING BOMBS ;

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • MASK SMOKE GRENADE GFM - 76 ( collaboration with SC Pro Optica SA ) ;
    • AMMUNITION CAL. 40 x 47 mm WITH EXPLOSIVE GRENADE AND WITH INERT GRENADE ;
    • PRIMER CUPS : MG8, KTD, KTM, T-5, ... ;
    • TRACERS ;
    • TORCES FOR : 82 mm, 120 mm, 122 mm ;
    • PRIMER SCREWS SPA : KV4, KV5U, KV2, ... ;
    • 1lb AND 1/2LB TNT BOOSTERS .
              FUZES FOR 122 mm ROCKETS

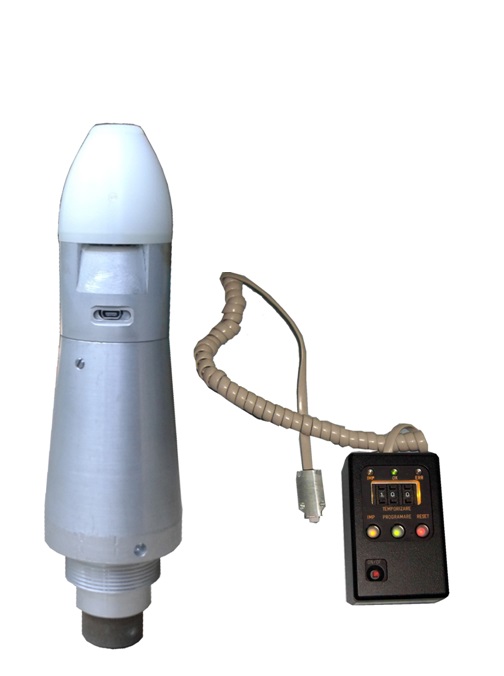

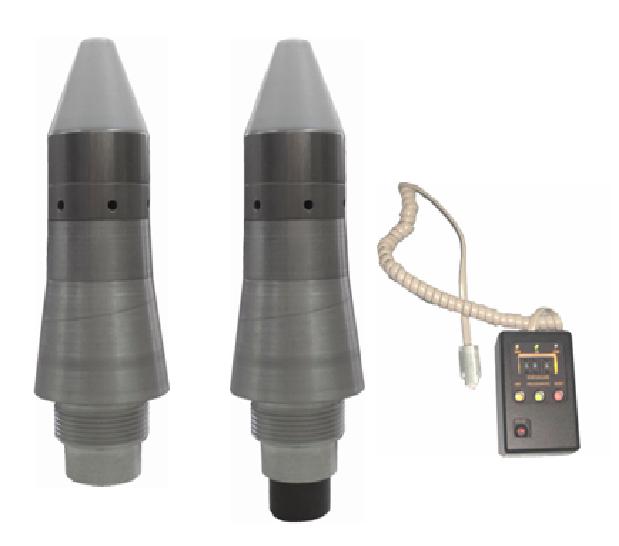

  • MULTIPLE FUNCTIONS FUZE MFF - 2T
    ( TIME, PROXIMITY OR IMPACT ) WITH PROGRAMMER :
    NEW
    SCOPE OF USAGE:
    THE FUZE IS MEANT TO EQUIP REACTIVE AMMUNITION CAL. 122 MM WITH EXPLOSIVE WARHEAD, WITH PREFORMED ELEMENTS, ILLUMINATING OR SMOKE THAT ARE FIRED WITH LAUNCHER APRA–40, BM–21, 122 LAROM, RM-70.
    CHARACTERISTICS AND PERFORMANCES:
    PHYSICAL FEATURES:
    - FUSE WEIGHT : 1170 ฑ 50 g ;
    - FUSE LENGTH : 270 ๗ 274 mm, WITH DETONATOR, 252 ๗ 255 mm, WITH PETARD ;
    - LENGTH OF PART BURIED IN THE OGIVE: 53.01 ๗ 54.39 mm, WITH DETONATOR , 35 ๗ 38 mm, WITH PETARD ;
    - THREAD TO BE MOUNTED IN THE OGIVE: SP. M 44.96 X 2
    - MAXIM DIAMETER: 63.8 mm
    PERFORMANCE FEATURES:
    - OPERATION MODE : TIME , PROXIMITY OR IMPACT ;
    - ELECTRONIC TIME FUNCTION : MINIM 99 %
    - PROXIMITY FUNCTION : MINIM 95 %
    - IMPACT FUNCTION : MINIM 98 %
    - ADJUSTABLE SETTING TIME : 5,5 S ๗ 199,9 s, WITH INCREMENT OF 0.1 s , IN MODE TIME 6 S ๗ 199 s, WITH INCREMENT OF 1 s , IN MODE PROXIMITY
    - SAFETY DISTANCE FROM THE BARREL : MINIM 150 m
    - PERFORMANCE HEIGHTS : H = 400 ๗ 700 m AT TIME OPERATION (NOMINAL VALUE 400 m), H = 10 ๗ 12 m AT PROXIMITY OPERATION ;
    - OPERATION MODE SETTING : THE PROGRAMMER PROVIDES OPERATION MODE SELECTION AND PERFORMS SETTING, RESETTING AND SET TIME CHECKING .

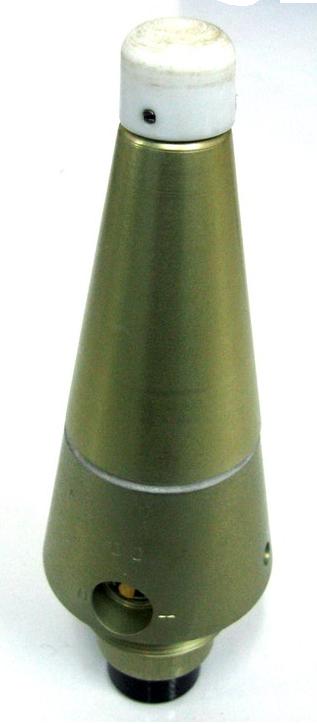

  • MRV-UBM
    THE MRV-UBM IS A MECAHANICAL IMPACT FUZE FOR 122mm EXTENDED RANGE HE ROCKET.
    - LENGTH OF FUZE: 200 ๗ 204 mm.
    - WEIGHT OF FUZE: 750 gr;
    - SAFETY DISTANCE FROM THE MANHOLE 150 ๗ 400 m;
    - OPERATING TEMPERATURES -400C ๗ + 500C;
    MODE OF FUNCTIONING:
    - ”00” – INSTANTANEOUS ( NONDELAY)
    - ”0” – WITH SHORT – DELAY 0,001 ๗ 0,005 s
    - ”+” – WITH LONG – DELALY 0,007 ๗ 0,013 s.

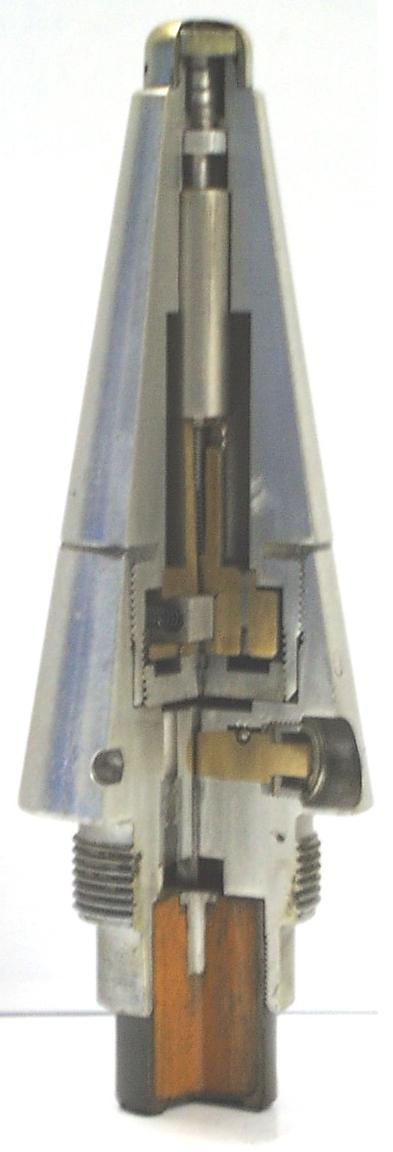

  • MRV-U
    THE MRV-U IS A MECAHANICAL IMPACT FUZE FOR 122 mm ROCKETS, TYPE M 21 OF.
    - LENGTH OF FUZE: 191 ๗ 195 mm;
    - WEIGHT OF FUZE: 710 gr;
    - SAFETY DISTANCE FROM THE MANHOLE 150 ๗ 400 m;
    - WEIGHT 710 g;
    MODE OF FUNCTIONING:
    - ”00” – INSTANTANEOUS ( NONDELAY)
    - ”0” – WITH SHORT – DELAY 0,001 ๗ 0,005 s
    - ”+” – WITH LONG – DELALY 0,007 ๗ 0,013 s
    - SAFETY MUZZLE DISTANCE: 150 – 400 m.
    - OPERATING TEMPERATURES -400C ๗ + 500C;

  • PROXFU 2/PP ( COLABORATION - MIRSAND )
    SCOPE OF USAGE:
    PROXFU-2 IS A RADIO PROXIMITY FUZE, UTILIZING THE DOPPLER EFFECT, WITH INDUCTIVE PROGRAMMING OF THE BLOCKING TIME. THIS ELECTRONIC IGNITION DEVICE, DETONATES HIGH EXPLOSIVE AMMUNITION, ABOVE GROUND, THUS INCREASING THE ARTILLERY SISTEM LETHALITY. IT OUTFITS DIFERENT 122 mm ROCKETS.
    CHARACTERISTICS AND PERFORMANCES:
    - OPERATION MODE: - PROXIMITY OR IMPACT (OPTIONAL);
    - ARMING :- MECHANICAL : BY 2 INDEPENDENT ARMING MECHANISMS: SET BACK FORCES ; SPIN ;
    - ELECTRONIC : MIN. 1 sec FOR ELECTRONIC ARMING ;
    - SAFETY FEATURES : - SPIN ROTE 443 rot/min ;
    - SAFETY SET-BACK ACCELERATION min 20 g ;
    - MUZZLE SAFETY DISTANCE 50 – 400 m ;
    - TIME FOR PROXIMITY FUNCTION 20 ๗ 120 sec ;
    - HEIGHT OF BURST: IN 2 STEPS OF SENSITIVITY, 5 ๗ 10 m ; 5 ๗ 30 m ;
    - IMMUNITY – THE FUZES HAVE IMMUNITY TO TYPICAL ELECTRONIC COUNTER-MEASURES. - WILL NOT BE ACTIVATED BY CLOUD, HAZE, THUNDER OR SAND STORM.
    - OPERATING TEMPERATURES -400C ๗ + 500C;
    - SHELF LIFE 10 years;
    - LENGTH OF FUSE 400 ๗ 405 mm;
    - WEIGHT OF FUSE ~ 1.385 kg.

  • PROXFU 2/FCC ( COLABORATION - MIRSAND)
    SCOPE OF USAGE:
    PROXFU-2 IS A RADIO PROXIMITY FUZE, UTILIZING THE DOPPLER EFFECT, WITH CABLE PROGRAMMING OF THE BLOCKING TIME. IT OUTFITS DIFERENT 122 mm ROCKETS.
    CHARACTERISTICS AND PERFORMANCES:
    SAME LIKE PROXFU 2/PP.
    - MUZZLE SAFETY DISTANCE 150 – 400 m.
