Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 χ 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T – 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF – 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS :
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • 76 mm IR / RP SMOKE GRENADE ( Collaboration with DIEHL Defence Germany ) ;
    • 76 mm SMOKE GRENADE LAUNCHER SGL-1TH ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • INFRARED FLARE IRF-TH;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS ;
    • CUMMULATIV SHAPED CHARGE .




                     FUZES FOR ARTILERY

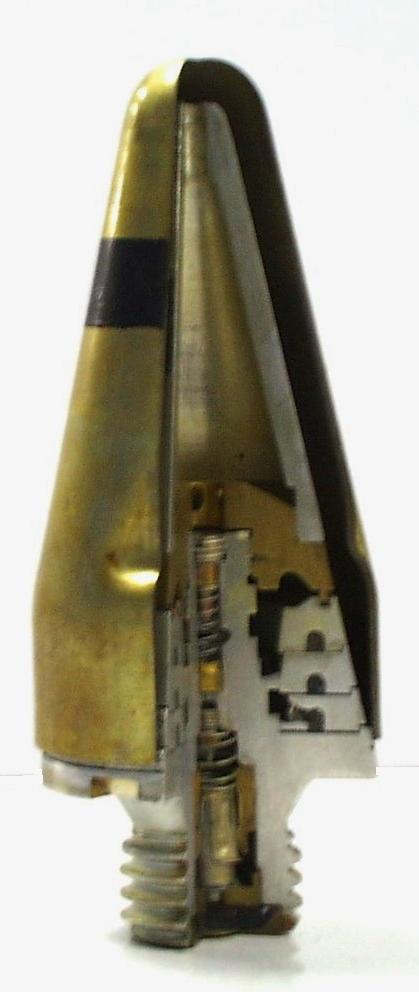

  • FUZE T 7
    THE T-7 TIME FUZE OUTFITS 122 mm AND 152 mm ROUNDS WITH ILLUMINATING PROJECTILE WITH PARACHUTE.
    - LENGTH OF FUZE 164,4 mm;
    - WEIGHT OF FUZE 735 g;
    PERFORMANCES:
    - OPERATION MODE - WITH TIME DELAY OR IMPACT;
    - MAXIMUM TIME DELAY OF 165 DIVISION SETTINGS: 77,5 s.

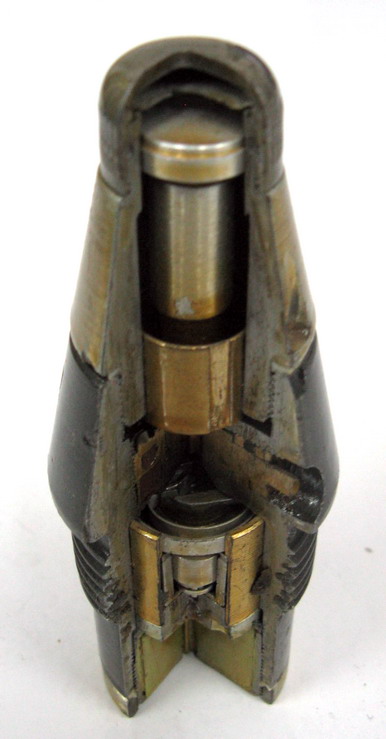

  • FUZE RGM 2
    THE RGM –2 IS A HEAD FUSE FOR ENDOWING AMMUNITION WITH EXPLOSIVE PROJECTILES CALIBER 122 mm AND 152 mm.
    - WEIGHT 430 g;
    - DETONATOR TEN;
    PERFORMANCE:
    THE FUSE CAN BE ADJUSTED: - INSTANTLY;
    - WITH DELAY 27 – 56 ms.
    - PERFORMANCE TEMPERATURE –400C χ +500C;
    - SAFETY DISTANCE FROM THE MANHOLE 5 χ 7 m;

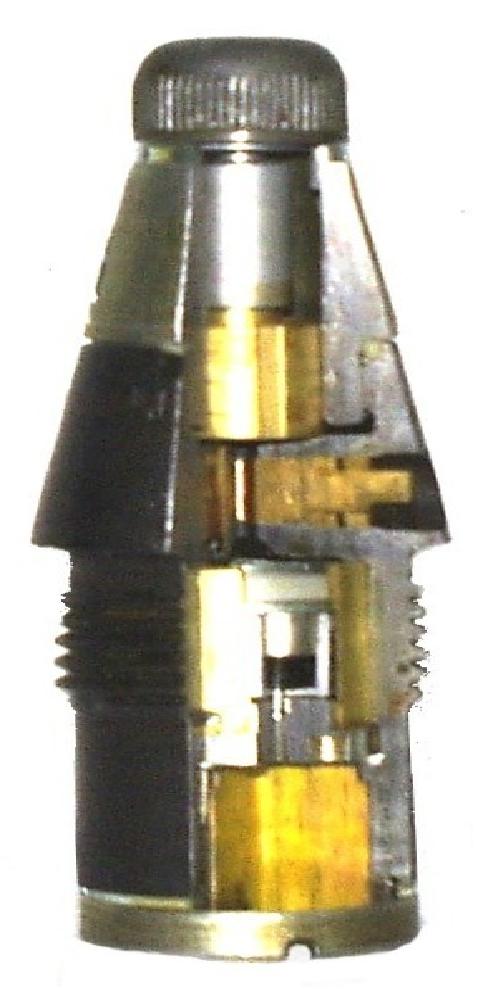

  • FUZE V 429E
    THE V- 429 E IS A NOSE FOR THE EXPLOSIVE PROJECTILE (HE) FOR THE D - 81 GUN ON THE T - 72 TANK.
    - LENGTH OF FUZE 105 mm, WEIGHT OF FUSE 430 g;
    - CROSS SECTION DIAMETER 40 mm;
    - INSTRUSION DEPTH 46,8 mm;
    - THREAD SIZE Sp M 36,22 X 2.54 mm;
    PERFORMANCES:
    OPERATION MODE – POINT DETONATING (PG);
    - D = SQ; - I= DELAY; SAFETY FEATURES:
    - SAFETY SET-BACK ACCELERATION min 2,000g;
    - SPIN ROTE 3,500 rot/min.

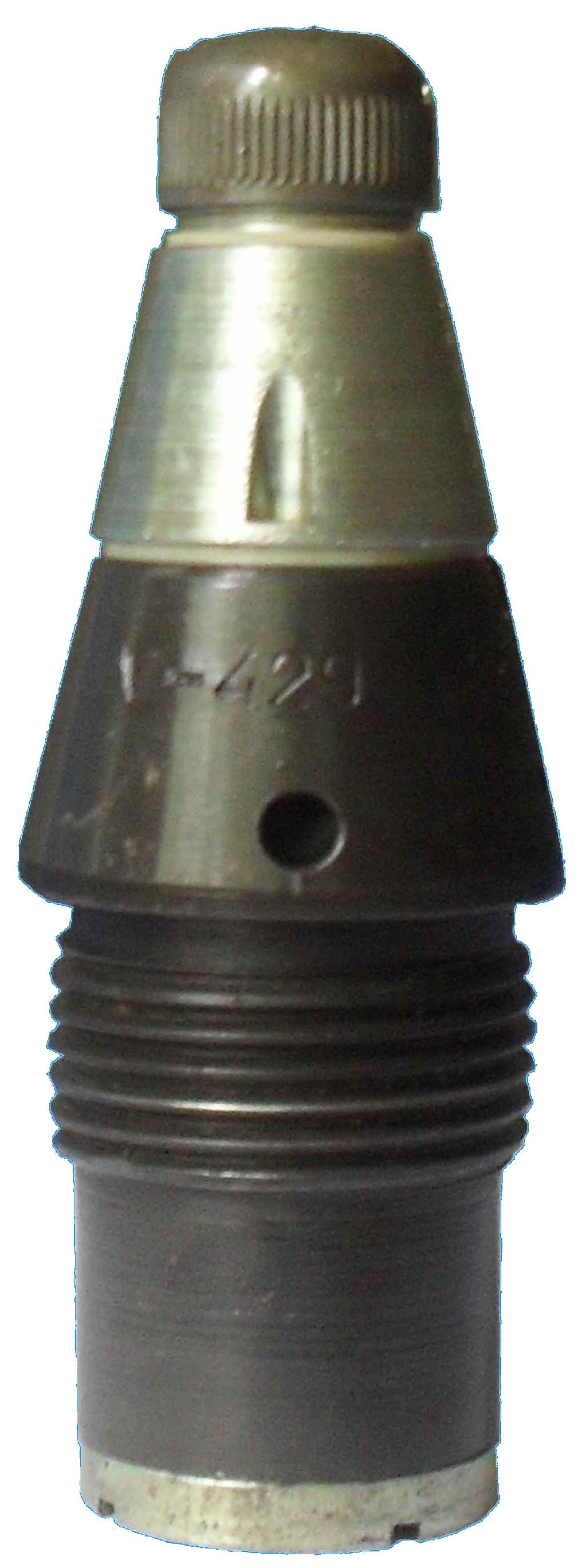

  • FUZE V 429
    IS A NOSE FUZE WITH IMPACT FUNCTIONING, INSTANTANEUS OR WITH DELAY. OUTFITTING OF 130 mm HE ROUNDS, FOR M46 GUN.
    - LENGTH OF FUZE 102,52-105,71 mm, WEIGHT OF FUSE 430 g;
    - DETONATOR TEN; SAFETY DISTANCE FROM MUZZLE MIN. 5-7 m.
